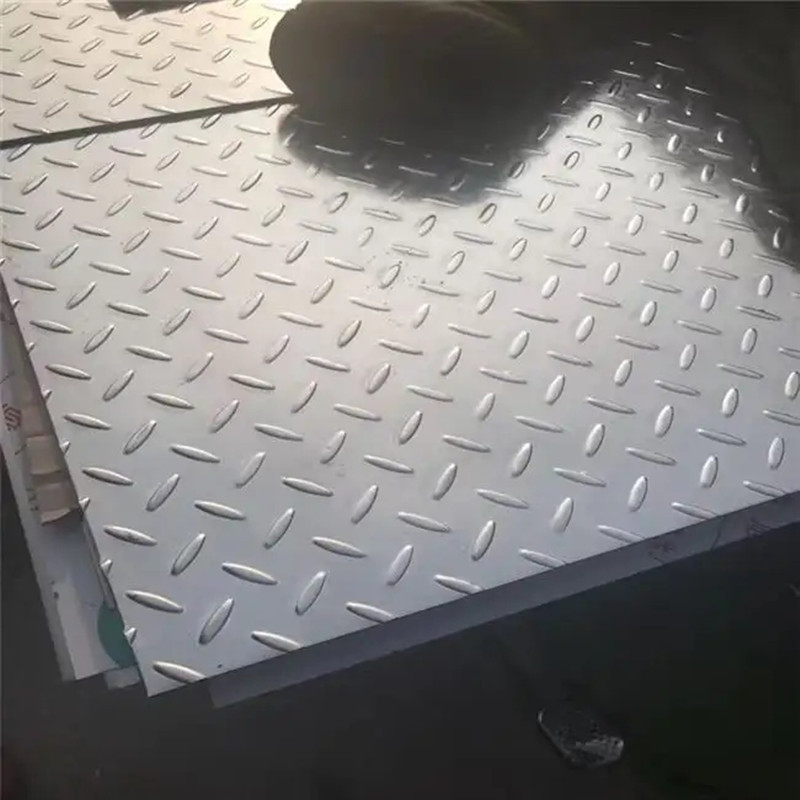

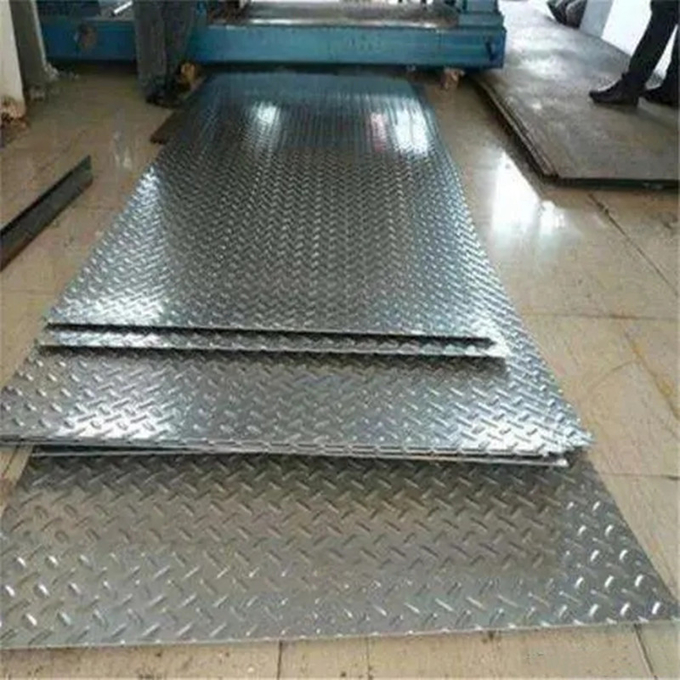

Ss304 Ss316 2mm 1.5mm 1.0mm Stainless Steel Checkered Plate
SS304 and SS316 are two common stainless steel materials. They
represent 304 stainless steel and 316 stainless steel, with
different chemical composition and performance characteristics.
Stainless steel square board is a stainless steel plate with a
square pattern. It is commonly used in applications such as
flooring, staircases, steps, shelves, and decoration. The thickness
options of this square board include 2mm, 1.5mm, and 1.0mm, which
represent the overall thickness of the stainless steel square
board.
SS304 stainless steel is a common type 18-8 stainless steel with
18%chromium and 8%nickel. It has good corrosion resistance and
mechanical properties. It is widely used in food processing
equipment, chemical equipment, medical equipment and architectural
decoration.
SS316 stainless steel is a more corrosive stainless steel,
containing 16%chromium, 10%nickel, and 2%molybdenum. It has
excellent performance in corrosion resistance, acid resistance and
anti -chloride corrosion, and is often used in marine environment,
chemical processing equipment, medical equipment and pharmaceutical
industries.
The thickness options of these stainless steel square boards are
2mm, 1.5mm, and 1.0mm, which can be selected according to specific
needs. The pattern shape of the square board is usually square,
diamond or other geometric shapes, with decorative and non -slip
function.
All in all, SS304 and SS316's 2mm, 1.5mm, and 1.0mm stainless steel
square boards are stainless steel plates with square patterns,
which can be used in various applications. They have good corrosion
resistance, and the square pattern provides additional non -slip
function. According to the specific project needs, you can choose a
square board with different materials and thickness.
| Type | checkered stainless steel floor plate |
| Name | Ss304 Ss316 2mm 1.5mm 1.0mm Stainless Steel Checkered Plate |
| Thickness | 0.2 mm - 3.0 mm |
| Size | 1000*2000mm, 1219*2438mm, 1219*3048mm, customized Max.width 1500mm |
| SS Grade | 304,316, 310,202,201,409,410,430 etc. |
| Finish | PVD Color + checkered/Stamped |
| Avaible finishes | No.4, 2B,Hairline, Mirror, Etching, PVD Color, Embossed, Vibration,
Sandblast, Combination, lamination etc. |
| Origin | POSCO,JISCO,TISCO,LISCO,BAOSTEEL etc. |
| Packing way | PVC+ waterproof paper + strong sea-worthy wooden package |
| Chemical composition |
| Grade | STS304 | STS 316 | STS430 | STS201 |
| Elong(10%) | Above 40 | 30MIN | Above 22 | 50-60 |
| Hardness | ≤200HV | ≤200HV | Below 200 | HRB100,HV 230 |
| Cr(%) | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni(%) | 8-10 | 10-14 | ≤0.60% | 0.5-1.5 |
| C(%) | ≤0.08 | ≤0.07 | ≤0.12% | ≤0.15 |
Q:How can I get some samples?
A:Catalogue and most sample pieces are preparing for you already in
stock.
Customized samples will take about 5-7days. Please contact us for
further support.
Q:What is the MOQ?
A:If you are scheduling to place a small quantity order or trial
order, feel free to contact us, we can meet your requirements.
Q:Can you OEM or ODM?
A:Yes, we have a strong developing team. The products can be made
according to your request.
Q:How long Can You Guarantee for this product/finish?
A:Colors guarantee for more than 10 years. Original materials
quality certificate can be provided.
Q:What kinds of payment methods do you accept?
A:We accept the payment by T/T or L/C, besides, you can transfer to
our bank account, Western Union or PayPal.
Q:What is the average lead time?
A:For samples, the lead time is about 5-7 days.
For mass production, the lead time is 10-25 days. In all cases, we
will try best to accommodate your needs.
Q:Can you supply the relevant documentation?
A:Yes, we can provide most documentation such as Inspection
Certificate/Mill Test Certificate, Insurance, Certificate of
Origin, SASO, Form E, and other export documents what required.
